Tech Declassified : OLED Display Panel

By: Aman Singh

|

Updated on: 03-Mar-2023

4,251 views

Follow Us:

4,251 views

In comparison to conventional displays, these panels provide more benefits, including deeper blacks, higher contrast ratios, and improved energy efficiency. We shall go into the technology underlying OLED display panels in this post and examine their advantages.

Workflow of OLED Display Panels

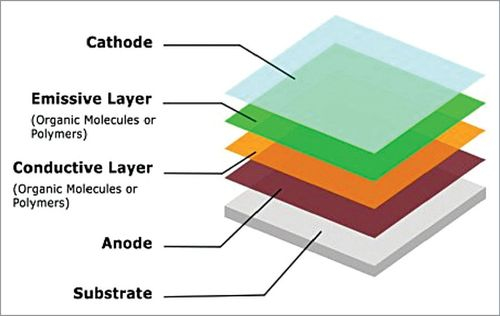

Layers of organic materials placed between two conductive electrodes, one of which is transparent, make up OLED display panels. These electrodes generate a flow of electrons when an electric current is supplied, which stimulates the organic materials and causes them to emit light. Each pixel's type of organic material has a role in determining the hue of the light it emits.

OLED display panels come in two different varieties: passive matrix OLED (PMOLED) and active matrix OLED (AMOLED). PMOLED screens are less complicated and more affordable than AMOLED displays, but they also have size and resolution restrictions. On the other hand, AMOLED displays are more complicated, more expensive, and they have a lower refresh rate, but they have a higher resolution and better colour accuracy.

OLED display panel advantages

The capacity of OLED display panels to produce intense blacks is one of its main advantages. The backlight used by conventional LCD panels to illuminate the screen might make it challenging to attain true black. On the other hand, OLED displays do not need a backlight because each pixel may be turned totally off to produce a genuine black. Higher contrast ratios and improved colour fidelity result from this.

Moreover, OLED display panels use less energy than conventional screens. OLED displays do not need a backlight because each pixel emits its own light. As a result, they use less energy to display darker images since there are fewer pixels that are generating light. Over time, this may result in significant energy savings.

Finally, compared to conventional screens, OLED display panels have better viewing angles. The colour and brightness of the display are constant no matter the viewing angle since each pixel generates its own light. This is crucial for larger screens, like televisions, where numerous individuals could be looking at the screen from various positions. Conclusion

OLED display panels' deeper blacks, higher contrast ratios, better energy economy, and increased viewing angles have transformed the field of display technology. The advantages they provide make them a popular option for high-end televisions, cellphones, and other gadgets, despite the fact that they are still more expensive than conventional displays. We may anticipate that OLED screens will become much more prevalent in our daily lives as technology develops.
